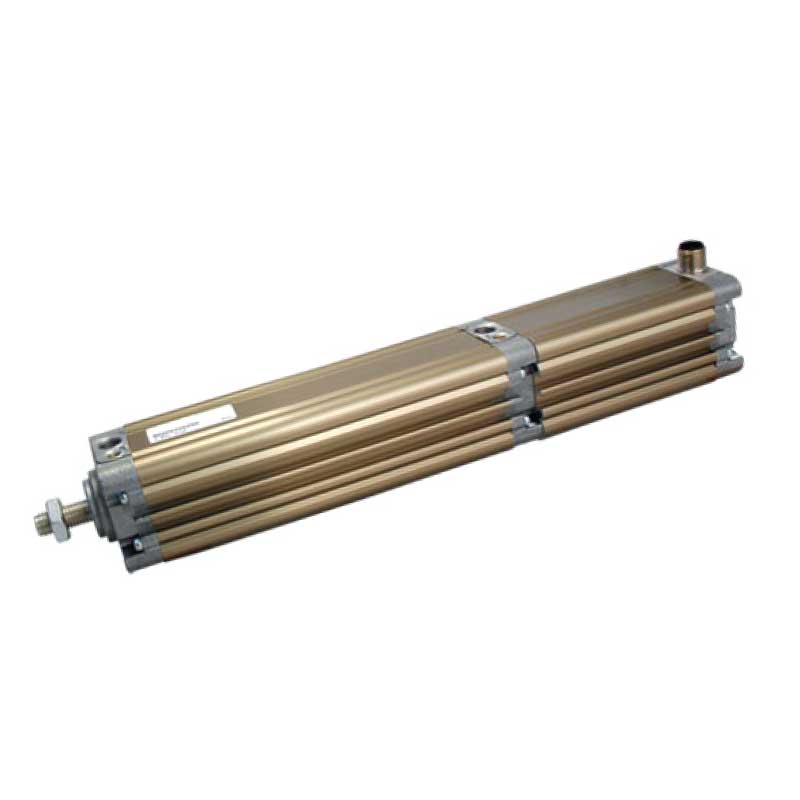

Pneumatic actuator with digital measuring detector Ø32 to 63mm.
– Provides position feedback of rod position.
– Applications include control of locking position, identification, classification and dimensional choice of objects (tolerances and rejects).
Technical Data
Ambient temperature
‘-10 to +70 °C
Working Pressure
2 to 10 bar
Bore
Ø32, 40, 50, 63
Pneumatic Port
G1/8
Fluid
Filtered air 30µm
Repeatability Precision
± 0.02 mm
Speed (max)
Ø/Thread – Screw mm/turn
32/12; 40/16; 50-63/20.5
Supply
5 to 24Vdc
Frequency Limit
60 kHz
Output Level
Low <0.5Vdc, High = H Vdc
Impedance
2 KΩ
Current Consumption (max)
40 mA max
Time of Upstroke/Downstroke
< 1μS
Pulse Rate
500
Resolution
± 0,01 pulses/turn
