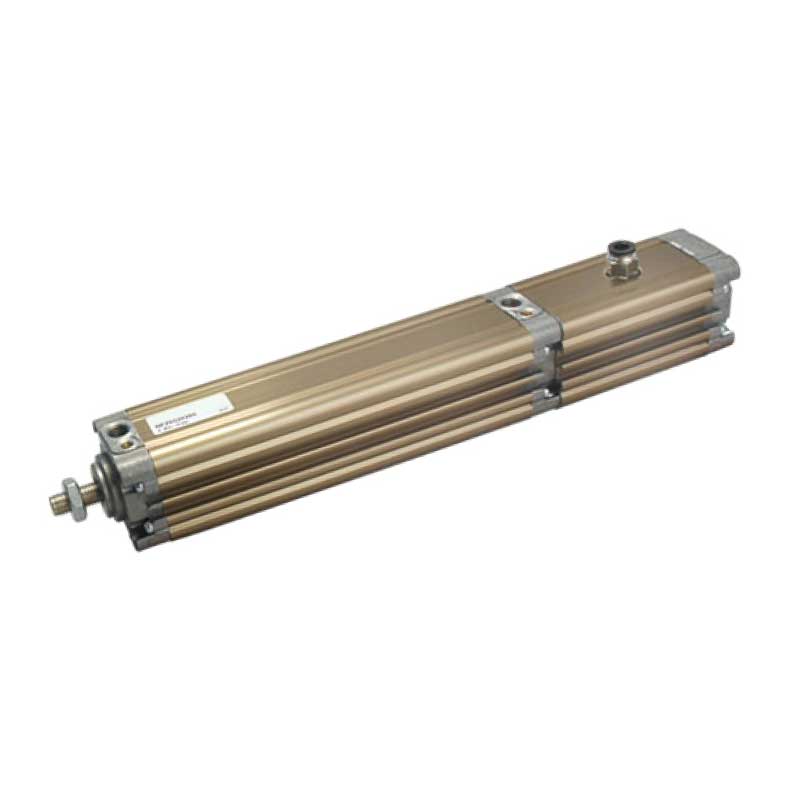

Pneumatic actuator with integrated locking system Ø32 to 63mm.
– High repeatability and intervention speed (16 m/s).
– Holding force of piston rod without axial play ≥ 3 times the thrust force of the cylinder at 6 bar pressure.
– If there is no signal and/or air supply the locking unit locks.
– Applications include emergency braking and locking.
Technical Data
Ambient temperature
‘-10 to +70 °C
Working Pressure
3 to 10 bar
Release pressure (min)
≥3 bar
Fluid
Filtered air 30µm
Barrel
Extruded aluminium alloy with groove for embedded sensors
Piston Rod
Chromium-plated steel
Magnetic
