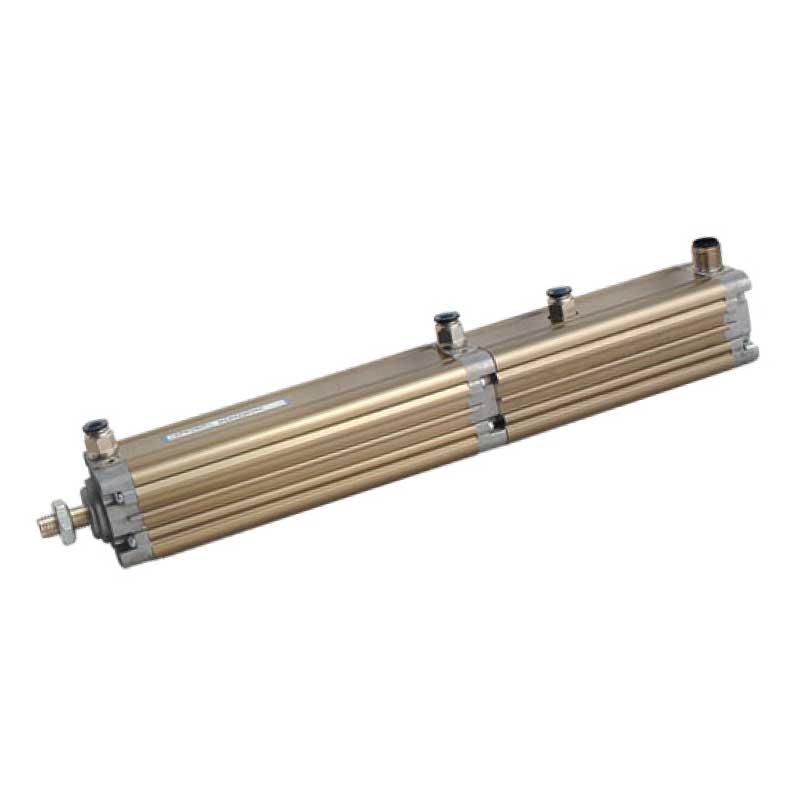

Pneumatic actuator with digital measuring detector and integrated locking system Ø32 to 63mm.
– Provides position feedback of rod position.
– Can lock rod once correct position is achieved.
– Applications include mechanization, palletization and automation.
Technical Data
Ambient temperature
‘-10 to +70 °C
Working Pressure
2 to 10 bar
Bore
Ø32, 40, 50, 63 mm
Fluid
Filtered air 30µm
Standard Stroke
Depending on bore size (refer to codification key)
Barrel
Extruded barrel in aluminium alloy with groove for flush-mounted sensors.
Piston Rod
Functioning of locking unit
Passive, in the absence of signal and/or air supply
Pressure (min)
>3 bar
Holding force of piston rod
≥3 times the thrust of the cylinder with air supply 6 bar
Speed (max)
1 m/s
Precision of repeatability
± 0.3 mm
