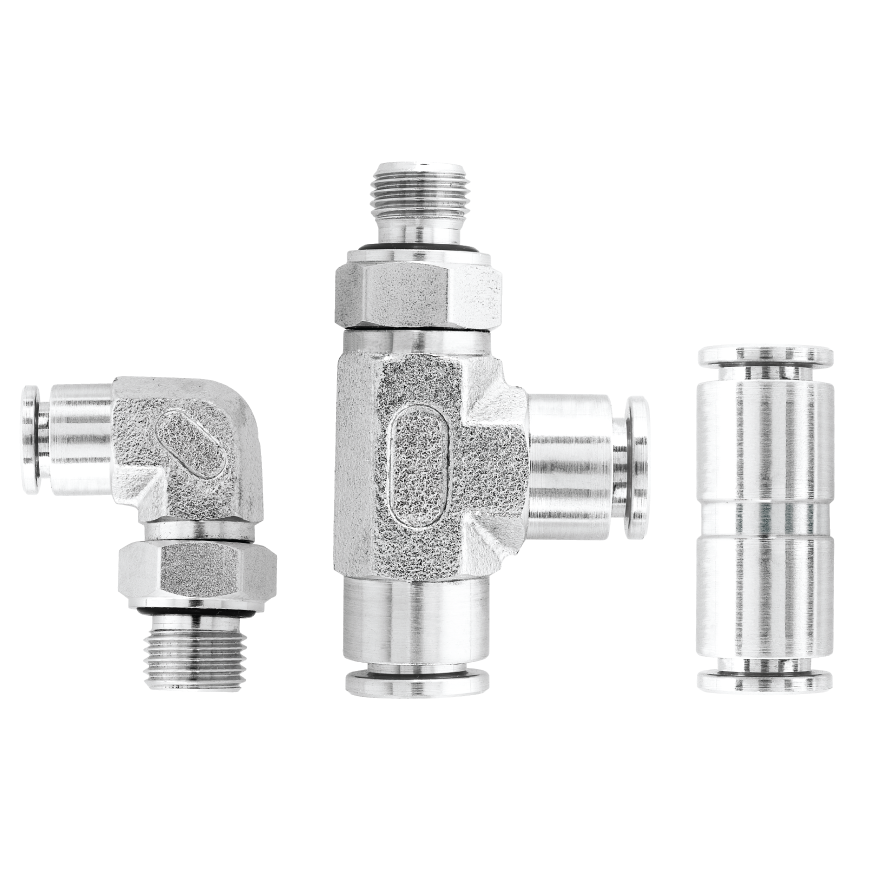

316 Stainless steel push-in fittings 1/8″ to 1/2″ BSP with tube sizes 4 to 12mm
Quality TecnAir Stainless steel Push-In fittings are manufactured to the highest quality making these products ideal for use in aggressive environments or in connection with corrosive fluids. Such applications include chemical, food, printing, marine and pharmaceutical industries.
Design TecnAir Stainless steel Push-In fittings are uniquely designed to offer “full flow” with zero pressure drop and provide zero leaks. The design consists of 6 precision components body, releasing sleeve, washer, gripping collet, guide ring, and ‘O’ ring. These components are manufactured to very stringent tolerances, under rigid quality control procedures in accordance with ISO 9001:2015.
Easy to Connect & Disconnect Push-In fittings are easy to connect and disconnect without the need for tools, and are locked in position by our “hold-safe” collet. The fittings provide automatic tube sealing using a viton ‘O’ ring. Each and every TecnAir stainless steel component is electro-polished to provide a corrosion resistant layer of chromium oxide, which is passive.
Technical Data
Type
Stainless steel push-in fittings
Bore
Full bore to ensure zero pressure drop
Sizes
Metric – 4mm to 12mm tube OD (Imperial – upon request)
Materials
316L Stainless Steel, (Bar stock ASTM A-479) & (Forged ASTM A-182)
Preferred Tube Material
Polyurethane, Semi Rigid Nylon, Fluoropolymer FEP 140 Tube,
Low Density Polyethylene, Stainless Steel Tube (When Grooved)
Surface Treatment
Electro Polished to ensure corrosion resistant surface layer of passive chromium oxide
Seals
Operating Pressure
20 bar
Operating Temperature
‘-10°C to + 150°C
Media
Gas, Air & Fluid (compatible with materials)
Tube Tolerance
±0.05mm
