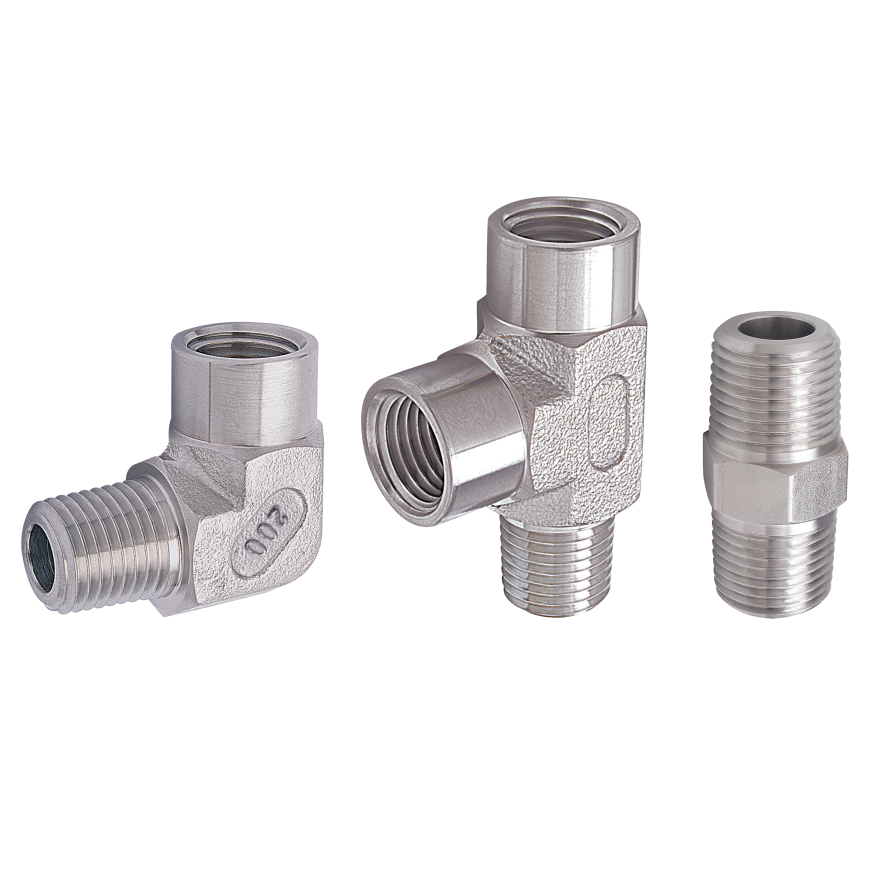

316 Stainless steel pipe fittings from 1/8″ to 1″ BSP and NPT
– High Pressure Series TecnAir high pressure stainless steel pipe fittings are precision engineered to ensure zero leakage under the most arduous high pressure applications up to 200bar.
– Material Traceability All fittings bodies and nuts are heat code traceable to the mill.
Technical Data
Type
Machined stainless steel pipe fittings
Sizes
G1/8 to G1
Materials
BAR STOCK FORGED
ASTM-SA-479 Type 316-SS ASTM-SA-182
BS970 316-S31 BS970 316-S31
DIN 4401 DIN 4401
ASTM A-276 – 316
Working Pressure
From 200bar
Working Temperature
Calculated in accordance with piping code ANSI B31.1
Media Gas
Gas, Air & Fluids resistant (compatable with above materials)
Bore
Surface Treatment
Electro Polished to ensure corrosion resistant surface layer of chromium oxide
