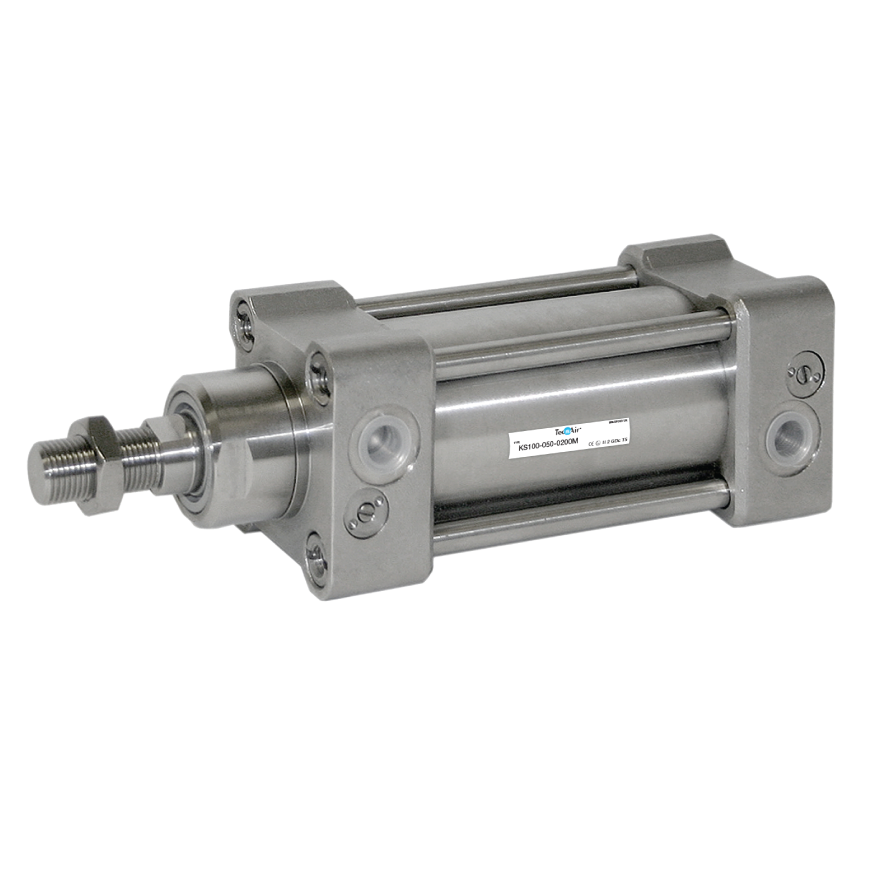

A range of ISO 15552 Stainless Steel Cylinders Ø16 to 200mm and accessories for use in harsh environments.
Long Life Cylinder
KS series cylinders are manufactured from AISI 316L Stainless Steel and are available with ATEX certification, upon request. The cylinders are tie-rod construction for added strength.
Removable Nose Bearing
The front end cap is manufactured in two parts, which include the main housing and a screwed front nose assembly. The piston rod seals, bearing and wiper seal are all housed within the front nose assembly, which can be removed from the main endcap body enabling quick and easy maintenance without disassembling the cylinder.
Unique Scraper Bush
The front end cap incorporates a wiper seal manufactured from Polyurethane, which has been developed for chemical and food industries. This device is highly resilient against abrasive substances and chemical attack.
Clean Line Castings
The castings have been produced without external casting cavities in order to eliminate contamination traps. The front end cap housing is machined from solid stainless steel bar to a smooth finish, for maximum strength and with clean lines. The rear end cap incorporates a stainless steel disc to enable the end cap to be used for through-rod as well as standard cylinders, and also ensures a clean line finish.
ATEX Certified
KS cylinders can be ordered with ATEX certification according to directive 2014/34/EU
Technical Data
Type
Stainless steel cylinder
Bore (mm)
32 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200
Mounting
ISO 15552
Stroke
2.5 metre (max)
Operating Pressure
0.5 – 10 bar
Fluid Filtered
50μ. Use with or without lubrication
Operating Temperature
Cushions
Mechanical & adjustable pneumatic cushioning
Seals
NBR/Polyurethane (other seals available upon request)
