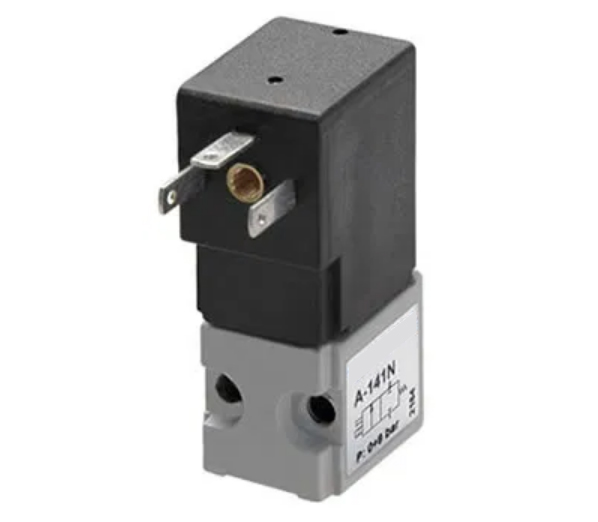

15mm valves to suit ISO 15218 interface
– All ports conveyed to the valve interface.
– High speed.
– 2/2 and 3/2 version Normally Open(NO) and Normally Closed(NC).
– Flow rates to 38Nl/min.
– Coils are removable using a patented clip release system.
– Single and manifold sub-bases.
Technical Data
Ambient temperature
‘-5 to +50 °C
Fluid temperature
Max +50 °C
Fluid
10 μm filtered air, lubricated or not
Mechanical system
Poppet
Ways/Positions
2/2 NC, 3/2 NC, 2/2 NO, 3/2 NO
Pressure
Max 9 bar
Control
Return
Mechanical spring
Connections
ISO 15218 interface
Nominal Ø
1.2; 1.5mm
Nominal flow rate
26; 38 Nl/min
Max frequency
2,700 cycles/min
CONSTRUCTIVE CHARACTERISTICS
Valve body
Technopolymer (aluminium external cover)
Seals
Nitrile rubber
Components
Stainless steel, brass
ELECTRIC FEATURES
Coil
U05 DD series
Power consumption
2W, 2.5W, 2.3VA, 3.5VA
Electrical connection
15 mm connector – Molex-type bipolar connector or loose wires
Voltage
24 V AC/DC – 48 V AC – 110 V AC – 230 V AC
