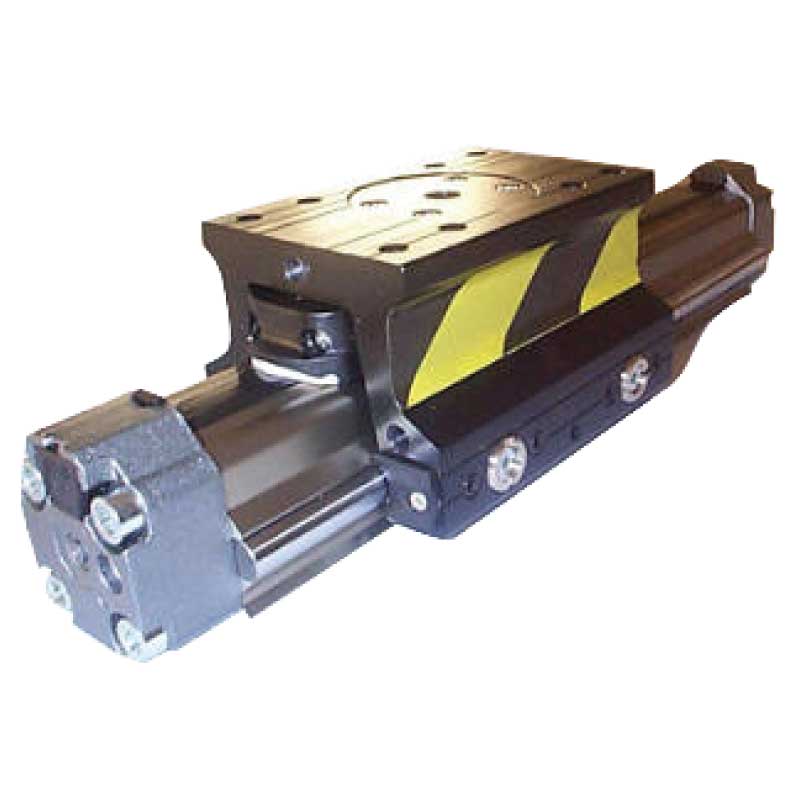

Rodless cylinders Ø16 to 50 mm and stokes to 6m with a unique sealing system and cushioning with long life and high efficiency, available with and without a guided carriage. Requires around half the space of a conventional cylinder.
Unique Strip Seal
The strip is manufactured from a high performance elastomer plastic material reinforced with Kevlar to withstand tensile stress.
High Performance Cushioning
The design incorporates floating cushioning seals which aid ramp down speed control.
Long Life
All dynamic seals and sliding strips were developed specifically for rodless cylinders to maximise life efficiency.
Speed
High translation speeds upto 3m/s.
Carriage
Carriages available in 3 types with differing lengths to suit application load and speed requirements.
Technical Data
Type
S1 = Rodless Cylinder without guides
S5 = Rodless Cylinder with integrated guides (Polymer bearings)
VL = Rodless Cylinder with integrated guides (Roller bearings)
Bore (mm)
16 / 25 / 32 / 40 & 50
Stroke
ø16mm = 5 metre (max)
ø25 – 50mm = 6 metre (max)
Operating Pressure
3 – 10 bar
Fluid Filtered
50μ. Use with or without lubrication
Operating Temperature
‘-20°C to + 80°C
Operating Speed
Cushions
Mechanical & adjustable pneumatic cushioning
Carriage Types
Standard, medium and long
