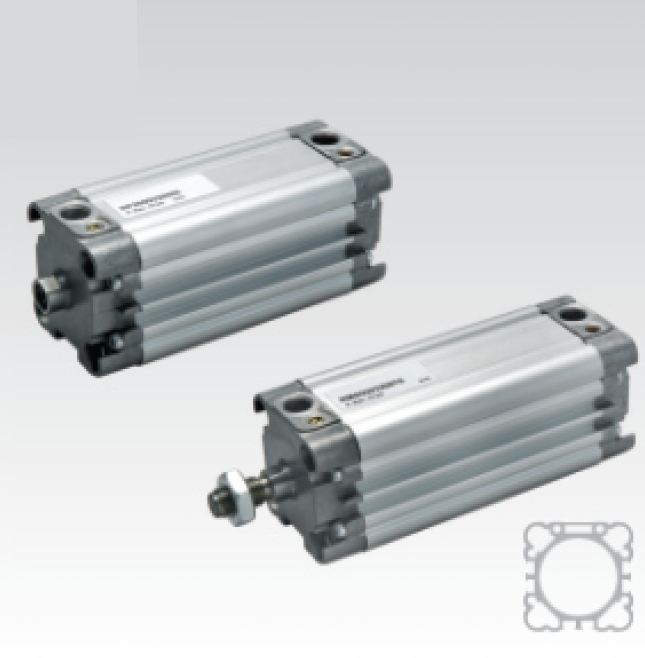

Compact Cylinders Ø16 to 100 mm with overall dimensions in accordance with UNITOP recommendations (RP series) and with ISO 21287 inter-axes (RM series) . Extended piston options also available for higher side loads. This product allows considerably higher speeds of operation and reduced noise levels without compromise in dimensions.
Adjustable Cushioning Our compact cylinders are available with adjustable pneumatic cushioning to allow higher transition speeds.
Extensive Range The range encompasses a number of different piston versions with Single Acting and Double Acting.
Technical Data
Type
Compact cylinder
Bore (mm)
Ø16 to 100 mm
Dimension Standards
UNITOP & ISO 21287 (depending on series)
Stroke
Refer to part number codification key
Operating Pressure
1.5 to 10 bar
Operating temperature
‘-20°C to +80°C
CONSTRUCTION DATA
Barrel
Aluminium – internally/externally anodised
End Caps
Aluminium
Piston
Standard Cylinders – Aluminium
Non-rotating Cylinders – Thermo plastic
Piston Guide
Acetal resin
Piston Rod
Chrome plated steel or Stainless Steel
Piston Rod Guide
Acetal resin
Rubber Cushioning
Nitrile rubber
Adjustable Cushioning Seal
Nitrile rubber
Magnet
Plastoferrite magnetic ring
