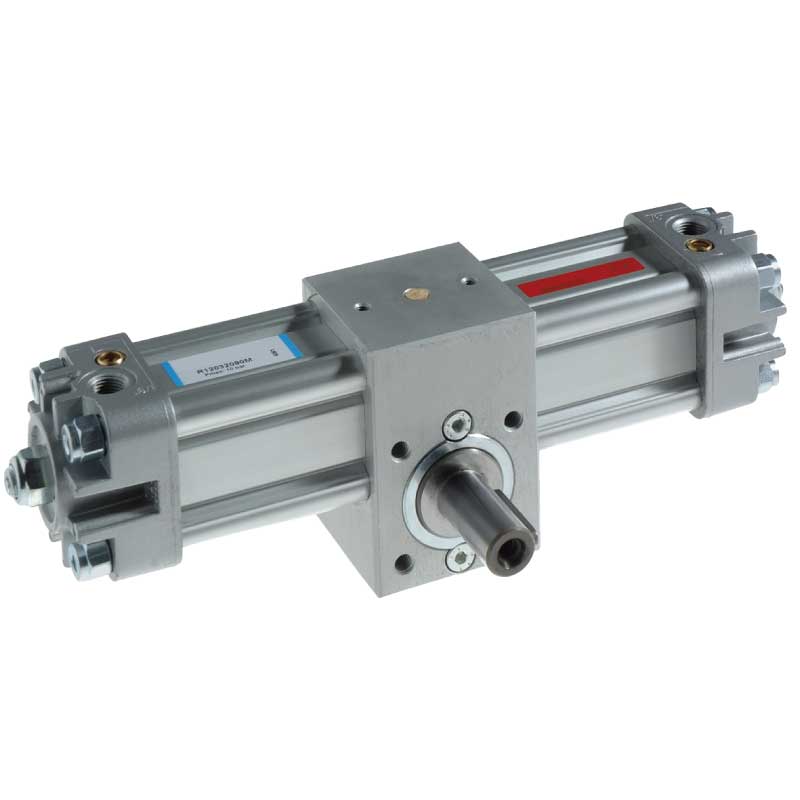

Rotary actuators Ø32 to 125 mm incorporate many technological features providing a higher degree of accuracy and reliability. The robust mechanical design allows for use in high demand applications within modern day automation.
Anti Backlash
The rack is produced from square stainless steel bar to reduce friction and minimise backlash. The rack moves within a technopolymer sleeve with adjustment points to reduce backlash.
Pneumatic Cushioning
The end caps incorporate a unique mechanical damping pad and adjustable pneumatic cushioning as standard.
Angle Adjustment
End caps can be supplied with or without adjustment screws for angle rotation adjustment
Technical Data
Type
Rotary Actuator
Bore (mm)
ø32 to 125
Rotation Range
90° – 180° – 270° – 360°
Rotation Tolerance
±3° (±5° with stroke adjustment)
Operating Pressure
1.5 to 10 bar
Fluid
Compressed air, Filtered 50µ. Use with or without lubrication
Operating Temperature
CONSTRUCTION DATA
Barrel
Aluminium extrusion anodised up to 18 microns
Bearing Type
Heavy duty roller bearing
