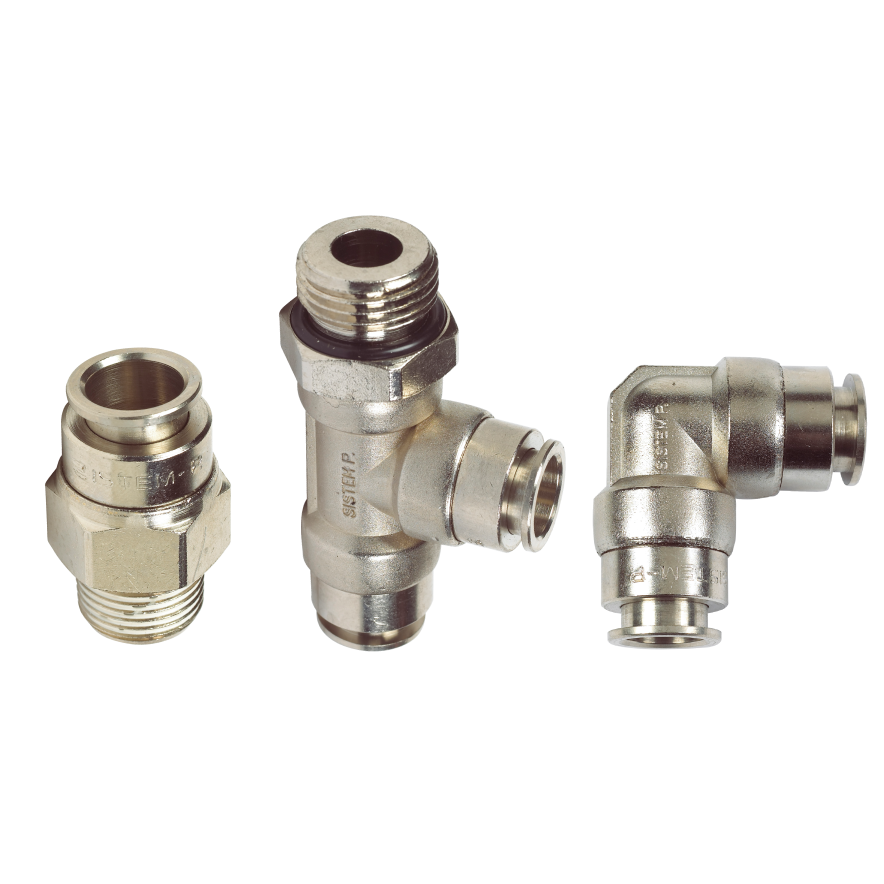

Nickel plated brass push-in fittings from M5 to 1/2″ BSP with pipe sizes 4 to 14mm
High Flow
Full flow fittings in accordance with internal diameter of tube selected.
Security
Design incorporates a double clamping security locking ring, which eliminates the possibility of the tube being pulled accidentally from the fitting. An internal support ring reduces the possibility of air leakage, by retaining the sealing position at all times.
Compliancy
Fittings are in accordance with ISO 14743 and are RoHS and PED compliant.
Technical Data
Type
Nickel Plated Brass Push-in Fitting
Tube OD (mm)
4 / 5 /6 / 8 / 10 /12 /14
Operating Pressure
‘-0.99 to 18 bar
Media
Filtered compressed air and vacuum
Operating Temperature
‘-10°C to + 80°C
Tube Tolerance
4 to 10mm tube ±0.05, 12 to 14mm tube ±0.1mm
Preferred Tube Material
CONSTRUCTION DATA
Materials
Nickel Plated Brass (EN-12164 – CW614N), Nickel Plated Zamak (EN 1774:99)
Seals
NBR
