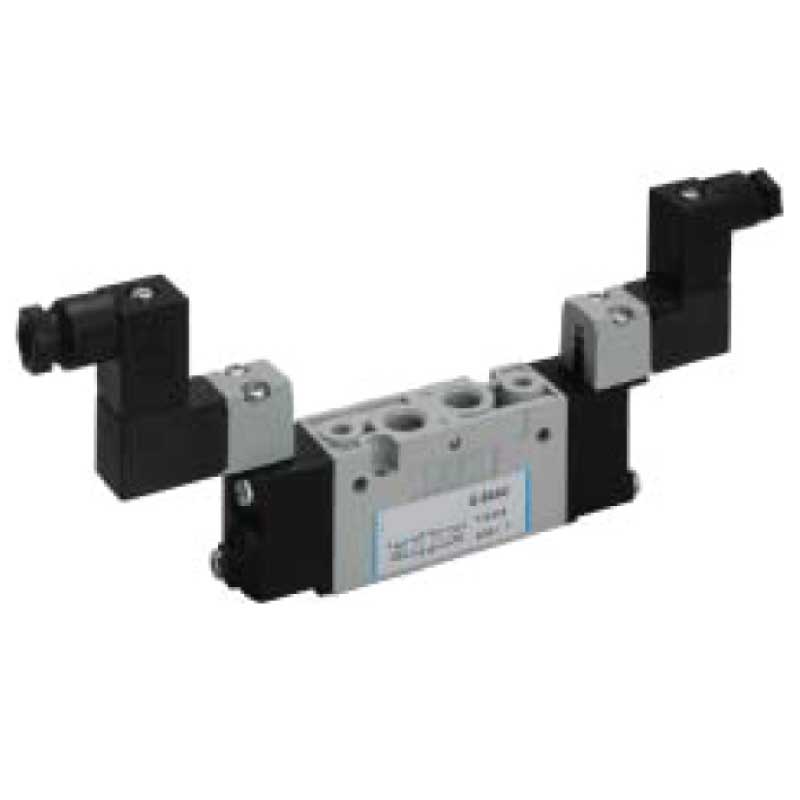

20mm Inline and sub-base mounted valves.
– G1/8 threaded valve body with traditional spool system
– Version with integrated electrical connection and external connection
– Compact design
– High flow rates
– Available in 5/2 – 5/3 – 3/2+3/2
Technical Data
Ambient temperature
‘-5 to +50 °C
Fluid temperature
Max +50 °C
Fluid
50 μm filtered air, lubricated or not
Mechanical system
Spool
Ways/Positions
5/2, 5/3, 3/2+3/2
Pressure
1.5 to 9 bar
Control
Return
Mechanical spring, pneumomechanical spring
Connections
G1/8
Nominal Ø
5mm
Nominal flow rate (Nl/min)
5/2 = 770, 5/3 = 700, 3/2+3/2 = 670
CONSTRUCTION DATA
Valve body
Zinc Alloy
Seals
Nitrile rubber
Subbase and actuators
Self-extinguishing technopolymers
Spool
Aluminium
ELECTRIC DATA
Electropilot/coil
A/U05 series
Voltage
24 V DC standard, upon request 12 V DC
24 V AC – 110 V AC – 230 V AC (only for versions with integrated electrical connection)
Power consumption
2 W (DC ) 2.3 VA (AC)
Protection degree
IP65
Manual override
Recessed button / 1 position
