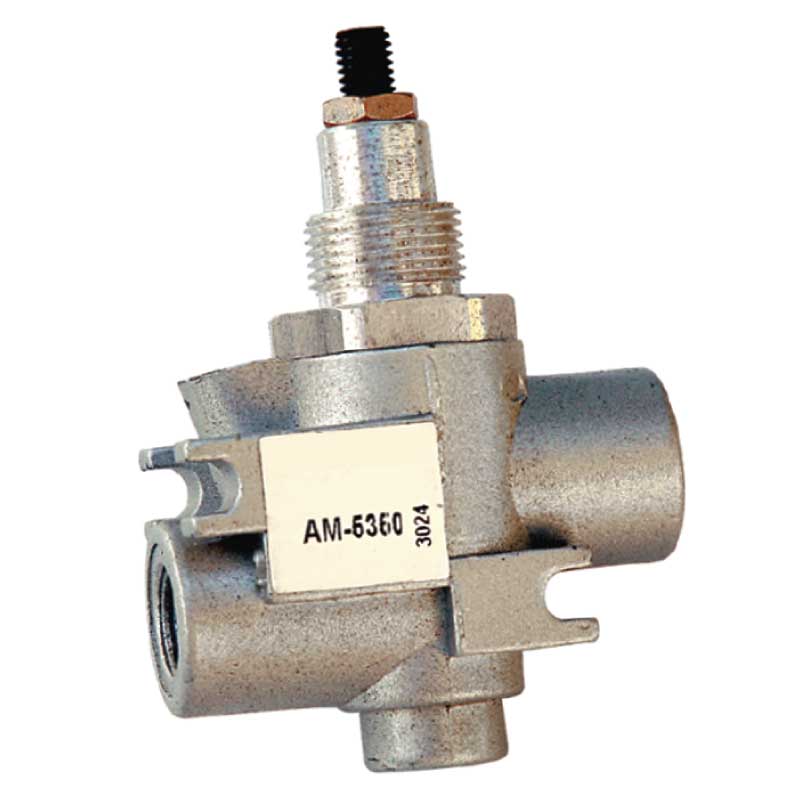

Economiser in G1/8 to G1
Economiser valves are used to save energy. Compressed air usage in pneumatic circuits is an expensive form of energy but the Economiser can drastically reduce the amount of air used. Most air cylinder applications only require the full thrust force in one direction only. The Economiser allows full air flow in one direction at normal pressure but acts as a pressure regulation device for the return stroke.
– Saves energy by regulating pressure for thrust with free reverse flow.
Technical Data
Type
Economiser
Regulated Pressure
1 – 5 bar
Fluid
Filtered air with or without lubrication
Operating Temperature
‘-20° C to 80°C
CONSTRUCTION DATA
Body
Zamak
Threaded mounting
Adjuster
Treated Steel
Seals
NBR
